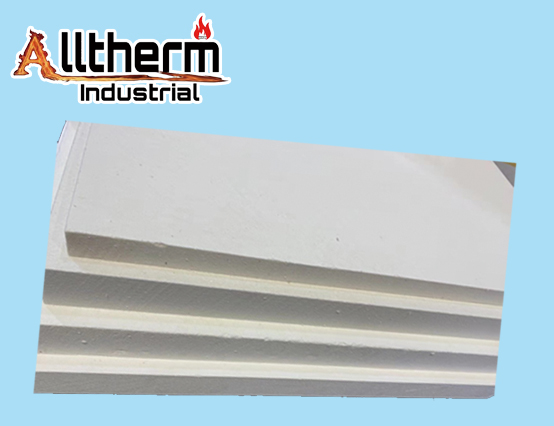

ALLTHERM ceramic fiber board is made by ceramic fiber bulk and a little binding agent through vacuum formed. ALLTHERM ceramic fiber board can maintain its mechanical strength after high-temperature heating, and the board includes 6 levels: 1050℃， 1260℃, 1350℃, 1430℃, 1600℃,and 1700℃. ALLTHERM ceramic fiber board can resist the scouring of airflow for its high strength, so it can be the material of internal linings.
ALLTHERM inorganic ceramic fiber board is made by ceramic fiber bulk and inorganic binding agent through vacuum forming. When using the board under the circumstance of high temperature, the pollution gas will not be generated.
Characteristics Applications
|
●Precise size and smooth surface. ●Easy to cut and install, and convenient to construct. ●Low impurity content; identical bulk density and thickness. ●Excellent mechanical and structural strength. ●Low thermal conductivity and low shrinkage. ●Ability to resist the scouring of airflow. |
●Back-up lining of high-temperature industry furnaces. ●Hot-face lining of ceramic kilns, heat-treatment furnaces and other industrial kilns ●Back-up and hot-face insulation materials for furnaces or aluminum industry. |
Technical Index
|
Item |
1050 |
1260-STD |
1260-HP |
1350-HA |
1430-HZ |
1600-PCF |
1700-PCF |
|||||
|
Max.Service Temperature(°C) |
1050 |
1260 |
1260 |
1350 |
1430 |
1600 |
1700 |
|||||
|
Density( KG/m3 ) |
220-300 |
250-350 |
250-350 |
250-400 |
250-400 |
400-550 |
450-550 |
|||||
|
Linear Shrinkage(24h) After burning( %) |
≤3.0 ( 950°C ) |
≤3.0 ( 1050°C ) |
≤3.0 ( 1100°C ) |
≤3.0 ( 1200°C) |
≤3.0 ( 1300°C) |
≤2.0 ( 1450°C) |
≤2.0 ( 1550°C) |
|||||
|
Modulus of rupture(MPa) |
≥0.5 |
≥0.5 |
≥0.5 |
≥0.6 |
≥0.6 |
- |
- |
|||||
|
loss on ignition(% ) |
≤8 |
≤8 |
≤8 |
≤8 |
≤8 |
≤4 |
≤4 |
|||||
|
Thermal Conductivity Rate(W/m·k)
|
400°C |
0.1 |
- |
- |
- |
- |
- |
- |
||||
|
600°C |
0.16 |
0.12 |
0.12 |
0.12 |
- |
- |
- |
|||||
|
ZZS |
800°C |
0.24 |
0.16 |
0.16 |
0.16 |
0.16 |
0.2 |
0.28 |
||||
|
|
1000°C - |
0.23 |
0.23 |
0.23 |
|
0.23 |
0.16 |
0.2 |
||||
|
Chemical Composition
( After burning ) ( %)
|
Al2O3 |
≥40 |
≥42 |
≥44 |
≥46 |
≥37 |
≥65 ≥72 ≥65 |
|||||
|
Al2O3+SiO2 |
≥96 |
≥97 |
≥98 |
≥98 |
≥84 |
≥98 ≥98 |
||||||
|
ZrO3 |
- |
- |
- |
- |
≥11 |
- |
- |
|||||
|
Others
|
≤4.0 |
≤3.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤2.0 R≤2.0 ‘ |
|||||
|
Standard Size ( L*W*T ) |
1200/600*1000*(6-120)，1200*500*(6-120) |
1000/900*600*20-150 |
||||||||||
|
Package |
Cartons or Pallets |
Pallets |
||||||||||
|
Other sizes of products and packages are available as required. |
||||||||||||
|
Recommended using temperature: In oxidizing or neutral atmosphere, 100 ~200°C lower than the maximum service temperature, In reductive atmosphere, 200 ~350°C lower than the maximum service temperature. |
||||||||||||
◆The result is average value not guarantee value, fluctuate within the standard value, for more details about our products properties or technical support, please contact ALLTHERM Technical Department .
