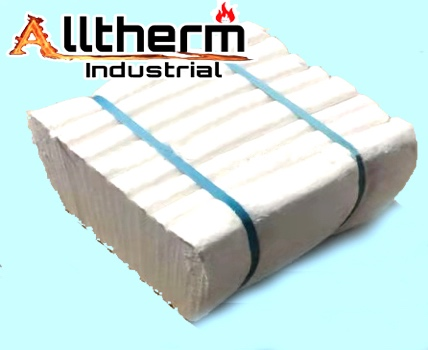

ALLTHERM ceramic fiber module is made of ALLTHERM ceramic fiber
blanket which is folded or cut by experienced professional technicians. We use special equipment for producing module to confirm the precise dimensions and keep smooth surface of module, and then be applied to the lining of various thermal equipment. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.
Characteristics Applications
|
●Low bulk density, low thermal conductivity. ●Resistance to heat-shock, ability to resist the scouring of airflow. ●Excellent mechanical strength , built-in anchor, safety performance. ●Easy to install. after installing the lining form ●a seamless space, good insulation effect. |
●Ceramic Industry: Tunnel kiln, shuttle kiln, roller kiln. ●Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc. ●Iron and Steel Industry: Ladle cover, annealing furnace, rotary furnace, bell furnace, walking beam furnace, hot air and flue pipes etc. ●Green energy industry: Waste in incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc. |
Technical Index
|
Item |
ALL-1050 |
1260-STD |
1260-HP |
1350-HA |
1430-HZ |
1600-PCF |
|
|
Max. Service Temperature(°C) |
1050 |
1260 |
1260 |
1350 |
1430 |
1600 |
|
|
Linear Shrinkage Rate(%) 192kg/m3/at(°C)/24h |
≤3.0 ( 950°C ) |
≤3.0 ( 1000°C ) |
≤3.0 ( 1100°C ) |
≤3.0 ( 1200°C) |
≤3.0 ( 1300°C) |
≤1.5 ( 1450°C) |
|
|
Density( kg/m3 ) |
172- 240 |
172- 240 |
172- 240 |
172- 240 |
172- 240 |
172- 240 |
|
|
Thermal Conductivity Rate(W/m·k) |
400°C |
0.14 |
0.09 |
- |
- |
|
- |
|
600°C |
0.2 |
0.16 |
0.16 |
0.16 |
0.15 |
|
|
|
800°C |
0.25 |
0.23 |
0.23 |
0.23 |
0.23 |
0.27 |
|
|
1000°C |
- |
- |
0.36 |
0.36 |
0.35 |
0.38 |
|
|
Chemical Composition (After burning ) ( %) |
Al2O3 |
≥40 |
≥43 |
≥45 |
≥52 |
≥37 |
≥72 |
|
Al2O3+SiO2 |
≥96.0 |
≥97.0 |
≥98.0 |
≥98.0 |
≥83 |
≥99 |
|
|
ZrO3 |
- |
- |
- |
- |
≥15 |
- |
|
|
Others |
≤4.0 |
≤3.0 |
≤2.0 |
≤2.0 |
≤2.0 |
≤1.0 |
|
|
Standard Size |
600/300*300*300/250/200/150mm |
||||||
|
Package |
Cartons or Pallets |
||||||
|
Other specifications according to customer's inquires ,we also provide professional thermal insulation construction design and installation services . |
|||||||
|
Recommended using temperature: In oxidizing or neutral atmosphere, 100~200°C lower than the maximum service temperature, In reductive atmosphere, 200 ~350°C lower than the maximum service temperature. |
|||||||
◆The result is average value not guarantee value, fluctuate within the standard value, for more details about our products properties or technical support, please contact ALLTHERM Technical Department .
