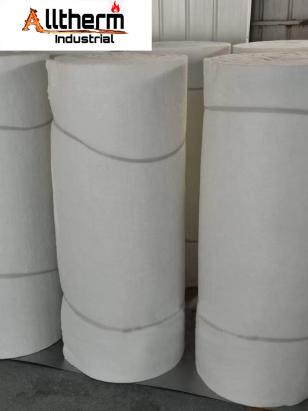

ALLTHERM BioSoluble fiber blanket is high strength, needled insulating blanket that is made from BioSoluble fiber bulk. The combination of spinning and needling operation produce tough, resilient and strong blankets,which have superior thermal and mechanical properties. Blanket can be folded, compressed and encapsulated to produce modules. It can meet European regulatory requirements (Directive 97/69/EC).
Features Typical Applications
|
●Excellent thermal shock resistance ●Excellent thermal stability ●High tensile strength ●Low thermal conductivity ●Low heat storage |
●Pipe wrap ●Furnace and kiln back-up insulation ●Annealing furnace linings ●Appliances insulation ●Expansion joint seals |
Typical Parameters
|
Description |
Biosoluble Blanket 1100 |
Biosoluble Blanket 1260 |
|||
|
Classification Temperature ('C ) |
1100 |
1260 |
|||
|
Chemical Composition (%) |
|||||
|
SiO2 |
60-66 |
69-79 |
|||
|
CaO |
24-30 |
- |
|||
|
MgO |
2-6 |
17-26 |
|||
|
CaO+MgO |
- |
- |
|||
|
Color |
White |
White |
|||
|
Shot Content (%) |
≤12 |
≤12 |
|||
|
Density (kg/m2) |
64 |
96 |
128 |
96 |
128 |
|
Tensile Strength (kPa) |
30 |
50 |
70 |
50 |
70 |
|
Permanent Linear Shrinkage (%) |
1100℃X24h≤1.0 |
1260℃X24h≤3.0 |
|||
|
Thermal Conductivity (W/m:K) |
|||||
|
200℃ |
0.06 |
0.05 |
0.05 |
0.05 |
0.04 |
|
400℃ |
0.12 |
0.09 |
0.08 |
0.11 |
0.09 |
|
600℃ |
0.16 |
0.14 |
0.13 |
0.19 |
0.15 |
|
800℃ |
0.27 |
0.21 |
0.18 |
0.31 |
0.23 |
|
1000℃ |
0.41 |
0.29 |
0.27 |
0.47 |
0.34 |
|
1200℃ |
- |
- |
- |
0.69 |
0.46 |
The data shown are typical average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety application or materials, please refer to the work practices and material safety data sheet.
