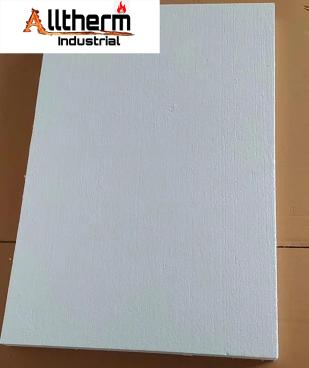

ALLTHERM BioSoluble Fiber board is manufactured in a wet formed process using BioSoluble bulk and binders. BioSoluble fiber board is designed for insulation applications experiencing vibration, mechanical stress and erosive forces. BioSoluble fiber board can reduce energy costs and cycling times due to high insulating capability, as well as providing stability to the entire refractory lining system.
Features Typical Applications
|
●Excellent thermal shock resistance ●Can be machined,cut and shaped easily ●High compressive strength and rigidity ●Low thermal conductivity and heat storage ●Light weight
|
●Furnace hot face lining in petrochemical furnace ●Furnace hot face lining in ceramic kiln ●Back-up insulation to dense refractory linings ●Molten metal transfer ●Expansion joints
|
Typical Parameters
|
Description |
BioSoluble Board 1100 |
BioSoluble Board 1260 |
|
Classification Temperature(C ) |
1100 |
1260 |
|
Color |
White |
White |
|
Density (kg/m3) |
300/340 |
300/340 |
|
Modules of Rupture (MPa) |
≥0.25 |
≥0.25 |
|
Compressive Strength (MPa, 10% relative deformation) |
0.15 |
0.15 |
|
Loss of lgnition (%) |
≤7 |
≤7 |
|
Permanent Linear Shrinkage (%) |
1000℃x24h≤2.0 |
1260℃x24h≤2.0 |
|
Thermal Conductivity (W/m.K) |
|
|
|
200℃ |
0.05 |
0.05 |
|
400℃ |
0.08 |
0.07 |
|
600℃ |
0.11 |
0.10 |
|
800℃ |
0.12 |
0.11 |
|
1000℃ |
0.15 |
0.14 |
The data shown are typical average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety application or materials, please refer to the work practices and material safety data sheet.
