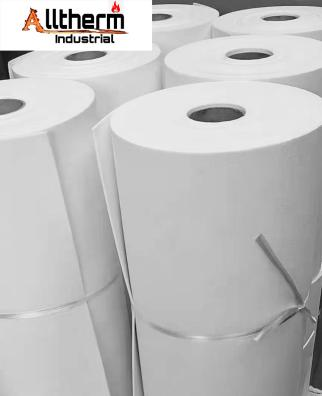

ALLTHERM bioSoluble fiber paper is manufactured by biosoluble fiber bulk and binders. The specialized paper-making process is used to form uniform and flexible paper . It is easy to be handled and cut. It was used in a wide range of applications as thermal insulation.It is especially suited to be used in gaskets and as a parting medium.
Features Typical Applications
|
●Excellent thermal shock resistance ●Easy to wrap, shape, or cut ●High-temperature stability ●High flexibility ●Low thermal conductivity
|
●Gaskets in furnaces and domestic appliances ●Door seals in furnaces ●Thermal insulation for pipe work ●Welding curtains ●Expansion joints
|
Typical Parameters
|
Description |
BioSoluble Fiber Paper |
|
Classification Temperature(C ) |
1100 |
|
Chemical Composition (%) |
|
|
SiO2 |
60-66 |
|
CaO |
24-30 |
|
MgO |
2-6 |
|
Color |
White |
|
Density (kg/m3) |
200 |
|
Tensile Strength (MPa) |
0.3 |
|
Loss of lgnition (%) |
4-8 |
|
Thermal Conductivity (W/m:K) |
|
|
200℃ |
0.05 |
|
400℃ |
0.07 |
|
600℃ |
0.11 |
|
800℃ |
0.15 |
|
1000℃ |
0.23 |
The data shown are typical average results of tests under standard procedures and are subject to variation Results should not be used for specification purposes or creating any contractual obligation. For more information on the safety application or materials, please refer to the work practices and material safety data sheet.
