Physical Properties |
||||
|
Products |

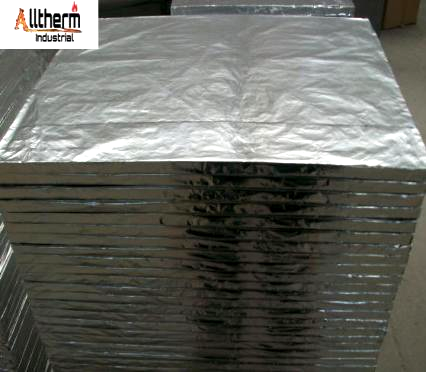

Microporous board 900 |
Microporous board 1000 |
Microporous board 1100 |
|
|
Classification Temp, Rating, ℃ |
900℃ |
1000℃ |
1100℃ |
|
|
Density , Kg/m3 |
260/350 |
260/350 |
260/350 |
|
|
Thermal Shrinkage, %, 800℃ |
2 |
2 |
2 |
|
|
Chemical composition % |
SiO2 |
46 |
49 |
45 |
|
Ti2Si2O5+Al2O3 |
44 |
46 |
51 |
|
|
Thermal conductivity (W/m.k), mean temperature |
200℃ |
0.021 |
||
|
400℃ |
0.025 |
|||
|
600℃ |
0.028 |
|||
|
800℃ |
0.034 |
|||
|
Characteristic |
||||
|
■Extremely low thermal conductivity ■ Low heat storage |
||||
|
■Non combustibility ■ Cutting available |
||||
|
Application |
||||
|
■Ladle Insulation lining materials ■ Fire protection |
||||
|
■Furnace lining materials ■ Pipe Insulatio |
||||
|
Covered materials in surface |
Alumina Foil /Glass Fiber Cloth / PE foil |
|||
|
Available Size , mm |
||||
|
Length |
Width |
Thickness |
||
|
600 |
400 |
10 - 50 |
||
|
1000 |
500 |
10 - 50 |
||
|
1000 |
610 |
10 - 50 |
||
